【Reliable USB Cable Tester】: The product can be used to test different types of USB cables, including TypeB 3.0, TypeB 2.0, TypeC 3.0 (TypeC 3.1/TypeC 3.2), MicroB 3.0, MicroB 2.0, MiniB 2.0, and Lightning.
【Convenient and Practical】: The product features a portable design, compact size, and is easy to carry and use. It's comes with an acrylic case to protect the usb cable tester from damage.
【Multiple Power Supply Options】: Supports two power supply modes: CR2032 button battery or external power supply (Vin) within the range of 3-12V. Vin provides reverse connection protection.

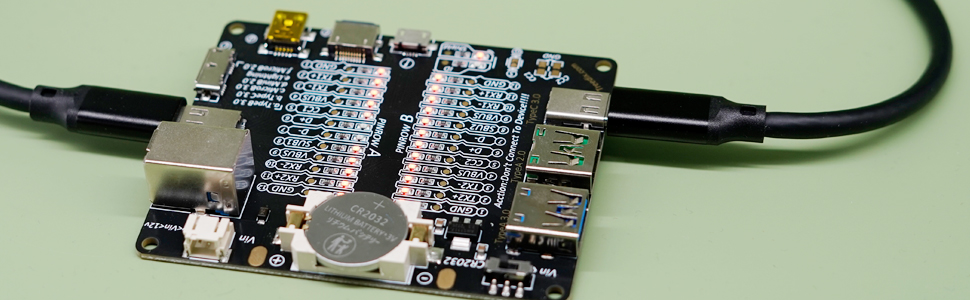

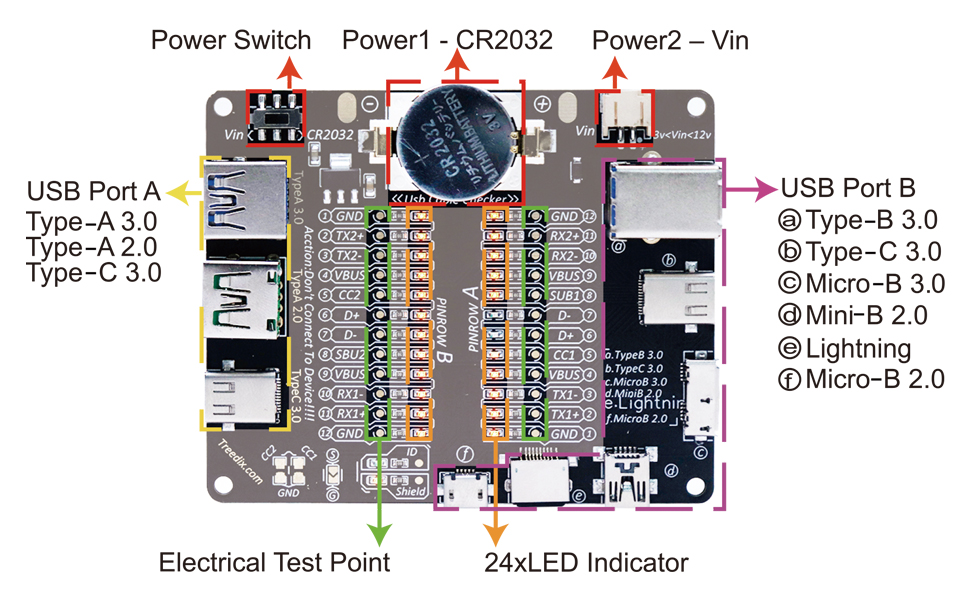

【LED Indicator Lights】: Test results are displayed through 24 LED indicators, with each pin corresponding to an LED light.
【Multi-functional and practical】: Supports multiple types of interfaces, allowing quick detection of data cable abnormalities and detection of internal short circuits that may interfere with normal operation.

USB Cable Tester Pinouts

Features:

1. The USB cable tester is a reliable tool used to test the connection status and functionality of USB cables.

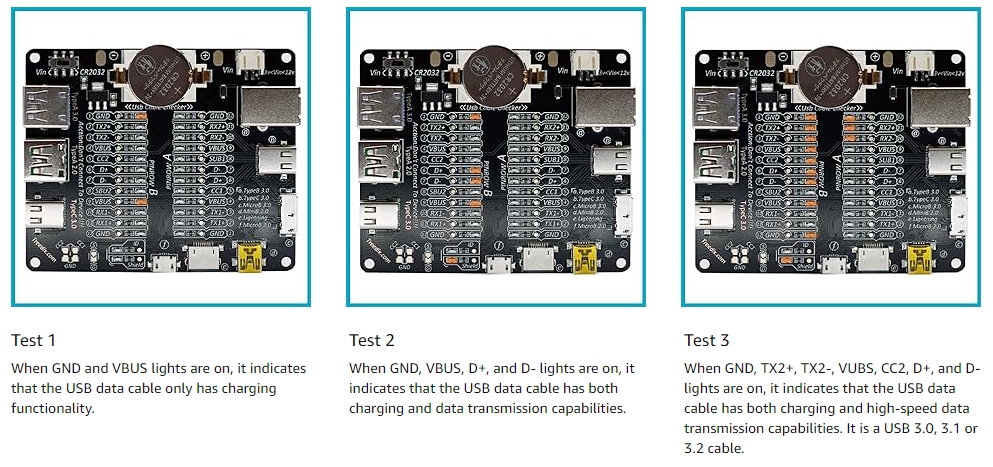

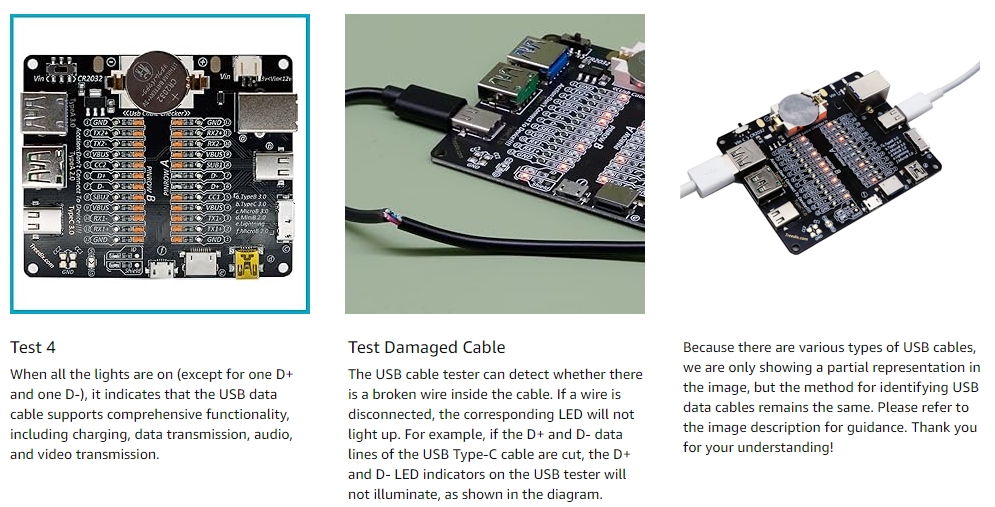

2. It features a simple and intuitive design. Users only need to plug the two ends of the USB cable to be tested into the corresponding connectors, and the LED indicators will display the functionality and connection status of the USB cable. This allows users to intuitively understand the cable's status, whether there are missing data transmission lines, high-speed transmission data TX/RX lines, or physical damage leading to disconnection. (Note: The cable's carrying capacity cannot be tested.)

3. PCB Size: 3.35 inches x 2.76 inches (85mm x 70mm)

4. Power: Power 1 - CR2032 button battery, Power 2 - Vin (external power supply)Vin range: 3-12v

5. Measurement types: TypeB 3.0, TypeB 2.0, TypeC 3.0/3.1/3.2, MicroB 3.0, MicroB 2.0, MiniB 2.0, and Lightning.
